Product details

SELF PRIMING CENTRIFUGAL PUMP

Centrifugal Horizontal self priming pump are used to deliver the petrol, kerosene, diesel and other petroleum product; and the temperature of medium is -20℃~+80℃. It is a kind of load and unload oil pump in boat. And High Pressure Centrifugal Horizontal self priming oil pump can be used to convey oil in the land oil depot and oil truck. In addition, the pump also can carry the sea water and fresh water.

Price: Contact us

Catalogue

DESCRIPTION AND FEATURES

Model TSP series - international pumps that are partially or completely above the fluid level allow air into the suction line, which must be evacuated or displaced before the pump can move the liquid. Self-priming pumps are capable of removing air at startup before beginning its normal pumping functions. The self priming pump is combined with the process design and manufacture of TSP pump, pump body by suction chamber, liquid storage chamber, volute, backflow hole, gas-liquid separation chamber and so on. Pump starts under the action of centrifugal force, the remaining liquid in the suction chamber and the air in the liquid inlet pipe are stirred into a gas-liquid mixture by the impeller, and the mixture enters the gas-liquid separation chamber through the volute. As the flow rate slows down, the gas-liquid separation is caused, the air is discharged from the pump outlet, and the liquid returns to the pump through the liquid backflow hole. After several cycles, the air in the liquid inlet pipe is discharged, so that a certain vacuum is formed in the pump

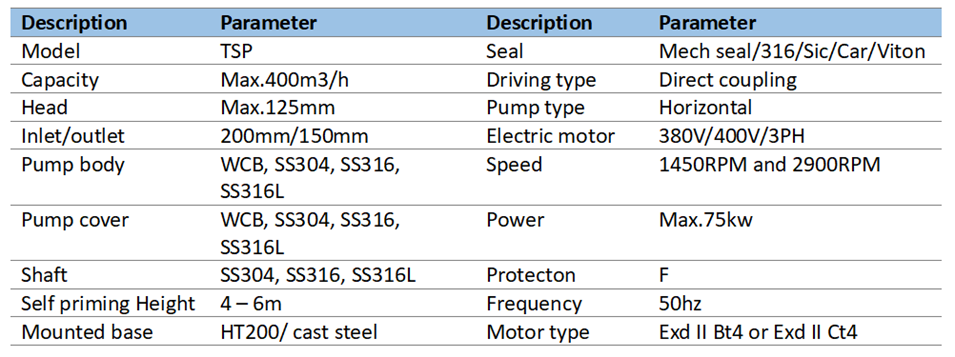

Standard, construction and application

The model TSP - self-priming pump is based on DIN24256 international standards, the centrifugal pump and self-priming centrifugal pump performance combined, self-designed and developed strong self-priming industrial pump. Centrifugal pumps are widely used in various industries and applications, including water supply, oil and gas, chemical processing,...
