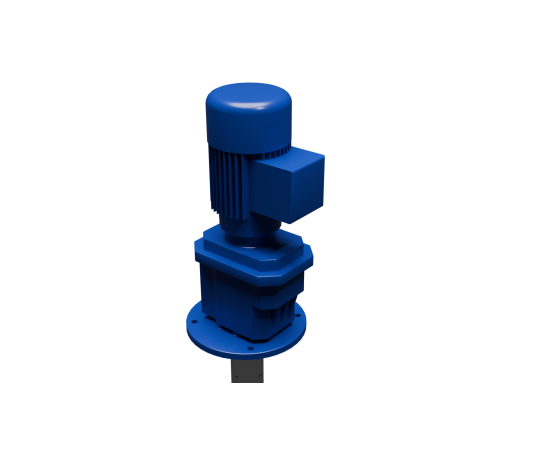

VERTICAL AGITATORS - AVS SERIES
The AVS Series vertical shaft mixers, specially designed by GREC Srl (Italy), are the ideal industrial mixing solution, meeting the demands for high performance and long-term durability. With robust helical gears, a sturdy construction, and stable operation, the AVS Series mixers are suitable for applications requiring heavy loads and harsh working environments.
Price: Contact us
Views: 4
Outstanding Features
Helical Gearbox:
- Gearbox design with a solid cast‑iron housing, providing strength and durability.
- Reinforced bearings capable of withstanding torque and bending loads from the impeller without the need for additional supports.
- Smooth transmission, high efficiency, and energy saving.
Vertically Mounted Motor:
- Motor positioned vertically, optimizing installation space, especially when the distance from the roof to the tank is large.
- This configuration minimizes vibration and ensures efficient power transmission.
Robust Agitator Shaft:
- Shaft connected to the gearbox via a rigid coupling, ensuring precision and durability during operation.
- Can be customized with sealing solutions such as lip seals or mechanical seals if required.
Versatile Impellers:
- Impellers designed and customized for specific applications, ensuring optimal mixing performance.
Key Technical Specifications
- Power range: From 0.55 kW to 7.5 kW
- Mixing speed: 60 – 280 rpm (depending on model and application)
- Torque: 20 – 1000 Nm
- Bending load: 80 – 1500 Nm
- Axial thrust: 250 – 3500 N
- Models:
- AVS0, AVS1: For small power requirements
- AVS2, AVS3: Medium power
- AVS4: High power, heavy load capacity
Typical Applications
AVS Series vertical shaft agitators are widely used in:
- Water treatment: Mixing chemicals, sludge, or wastewater.
- Chemical industry: Blending solutions and reactive chemicals.
- Food industry: Mixing ingredients in food and beverage production.
- Pharmaceuticals & cosmetics: Ensuring homogeneity for sensitive products.
- Heavy industry: Supporting large tanks and mixing dense materials.
